DX-7 Receiver

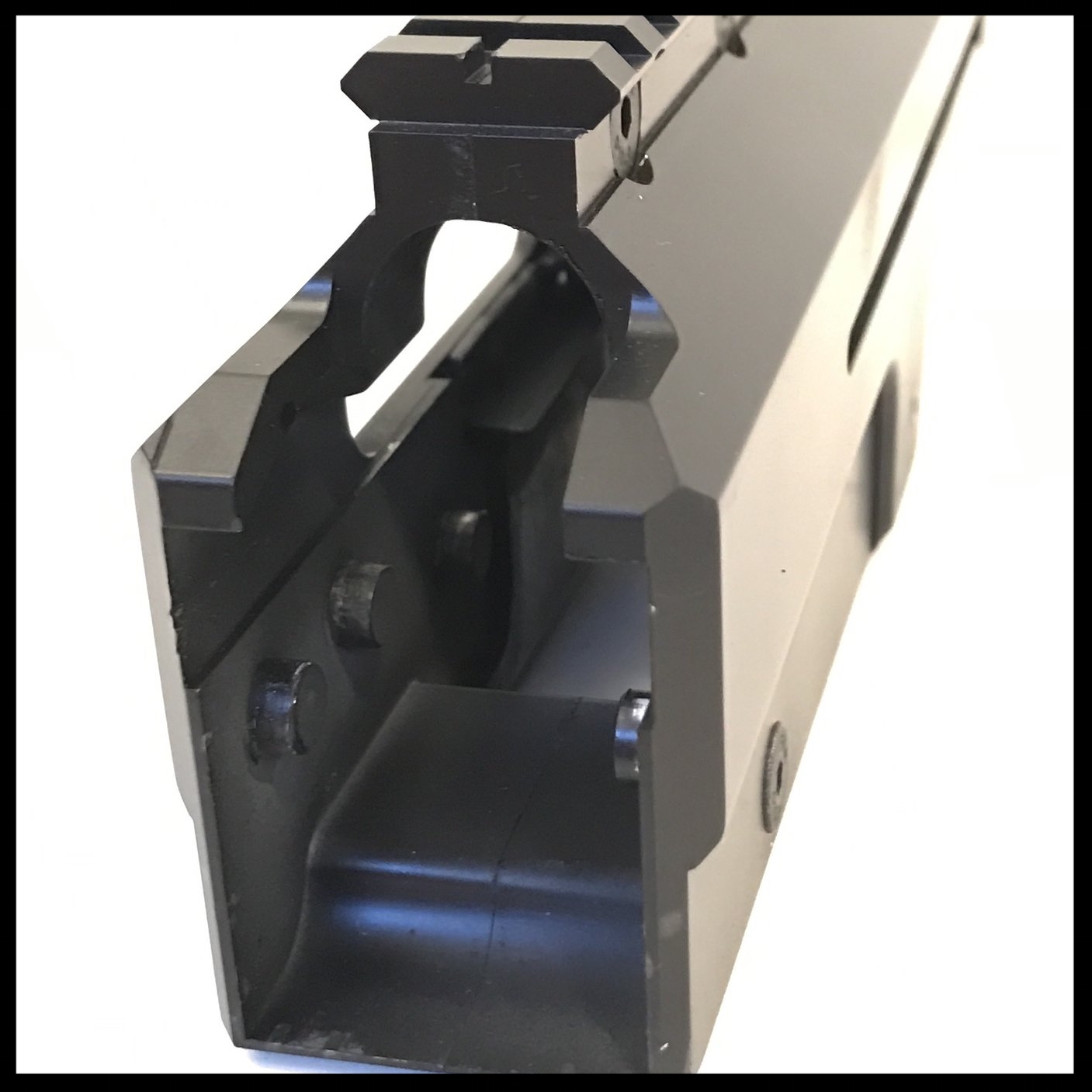

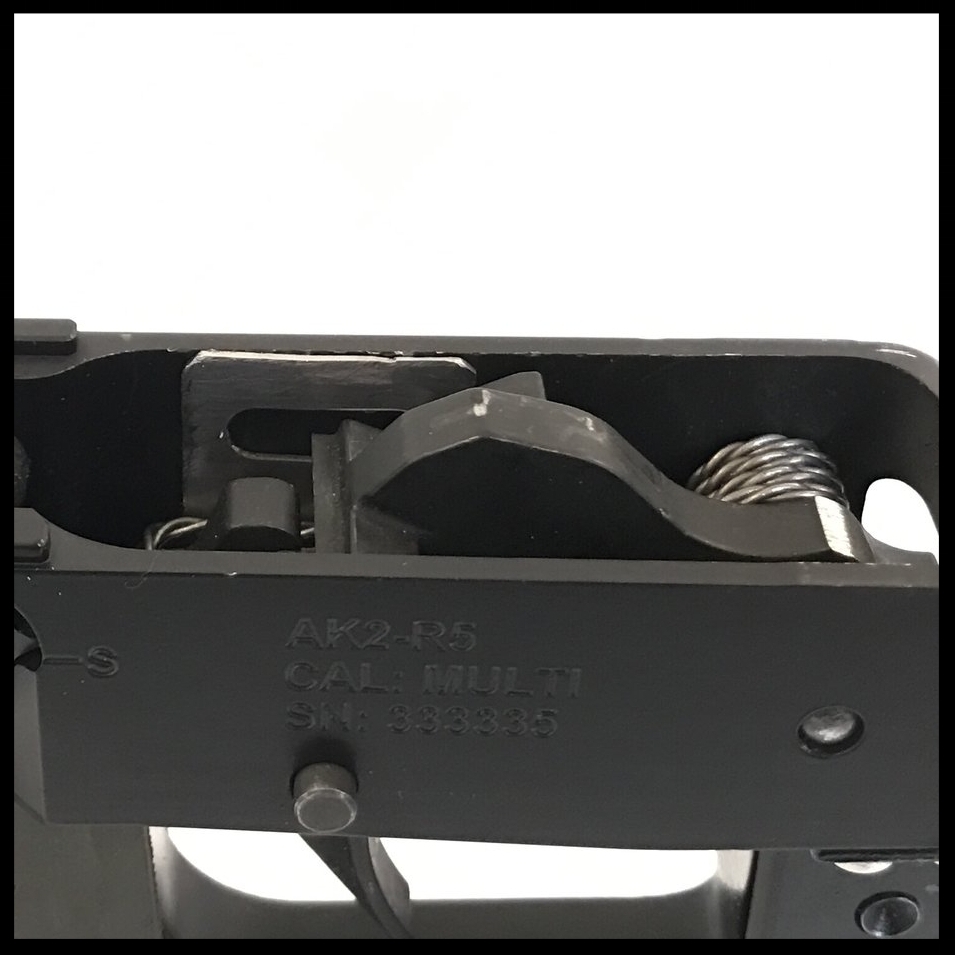

The DX-7 receiver is an upper and lower assembly and is Milled out of 6061-billet Aluminum for the AK rifle.

Technical Details

  • Lower Receiver Material: Milled 6061-Billit Aluminum
  • Lower Receiver Weight: .51 lbs
  • Coating: Uncoated
  • Multi caliber compatible
  • Upper Receiver Material: Milled 6061-Billit Aluminum
  • Upper Receiver Weight: 1.09 lbs
  • Coating: Uncoated

Included Components

  • Hardware
  • Hammer Pin
  • Bolt Carrier Spring Spacer
  • Trigger Safety Extension
  • Internal Hardened Rails (ships assembled on upper receiver)
  • Uncoated Upper Receiver
  • Uncoated Lower Receiver
  • Charging Handle
  • Rear Receiver Pin
  • Rear Receiver Pin Retainer
  • Front Pivot Pin
  • Trigger Pin Retainer

MSRP: $429

Required Component Modification


Trunnion

Stock Component: Stock AKM cast or forged trunnion

Modification:

  • Enlarge rivet holes to accept locking bosses on upper receiver.

Bolt Carrier

Stock Component: Stock AKM bolt carrier

Modifications:

  • 8mm hole in left side for charging handle.
  • Remove stock charging handle (cut or mill)
Trigger The provided trigger safety extension can be welded or bolted onto the stock trigger.

Trigger

The provided trigger safety extension can be welded or bolted onto the stock trigger.

Recoil Spring The stock recoil spring mount must be removed to allow it to sit in the pocket of the lower receiver.

Recoil Spring

The stock recoil spring mount must be removed to allow it to sit in the pocket of the lower receiver.

Patent pending
